WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries

Testo 160 temperature, humidity, light and UV radiation meters have been specially developed and designed for museums, galleries, libraries and archives. With them, you will be able to easily monitor and analyze the recorded data that the meters send to the Testo Cloud via WLAN via the interface of your computer, smartphone or tablet. Using the alarm function, you can immediately receive a notification via e-mail about exceeding the limit values. The devices store up to 40,000 measured values, and you can read the current data, value exceeded and battery status on the overview screen.

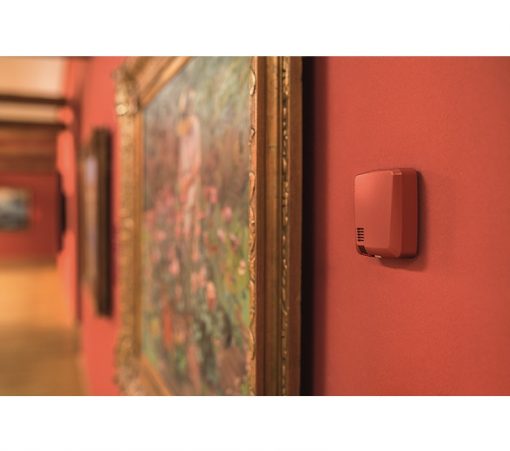

A special advantage of these meters are the decorative covers that can be painted as desired and thus imitate the background on which they are located, so they fit harmoniously and almost inconspicuously into the interiors of exhibition and other spaces.

testo 160 TH (for temperature and humidity)

The device is intended for monitoring the temperature and humidity values in showcases, exhibition spaces, archives, libraries and warehouses. The meter has integrated sensors for temperature and humidity. It has small dimensions and discreet design, easy to install and use.

With the device you get:

• free basic license for Saveris 2 Cloud
• 4 AAA batteries
• USB cable
• calibration protocol
• Wall carrier

Measuring range: – 10 … + 50 ° C / 0 … 100 % RH
Accuracy: ± 0.5° C / ± 2 % RH
Smoke. 76 x 64 x 22 mm

testo 160 THE (for temperature, humidity and UV)

The meter is intended for monitoring temperature and humidity values in showcases, exhibition spaces, archives, libraries and warehouses. In addition to internal sensors, it offers the possibility of connecting two external probes for temperature, humidity, lux or UV radiation. It is easy to install and use, offers more options.

With the device you get:

• free basic license for Saveris 2 Cloud
• 4 AAA batteries
• USB cable
• calibration protocol
• Wall carrier

Measuring range: – 10 … + 50° C / 0 … 100 % RH
Accuracy: ± 0.5° C / ± 2 % RH
Smoke. 76 x 64 x 22 mm

testo 160 THL (for temperature, humidity, lux and UV)

This device is intended for monitoring the values of temperature, humidity and lux, as well as UV radiation in showcases, exhibition spaces, archives, libraries and warehouses. It offers comprehensive microclimate and light control. It is easy to install and use.

With the device you get:

• free basic license for Saveris 2 Cloud
• 4 AAA batteries
• USB cable
• calibration protocol
• Wall carrier

Measuring range: – 10…+ 50° C / 0 … 100 % RH / 0 to 20,000 lux / 0 to + 10,000 mW/m²
Accuracy: ± 0.5° C / ± 2 % RH / ± 3.0 lux / ± 5 mW/m²
Smoke. 92 x 64 x 22 mm

testo 160 E (for glass showcases)

The device offers the possibility of connecting two external sensors for temperature and humidity, a probe for lux or a probe for UV radiation and for lux. Inconspicuous in size, easy to install and use.

With the device you get:

• free basic license for Saveris 2 Cloud
• 4 AAA batteries
• USB cable
• calibration protocol
• Wall carrier

Measuring range: – 10…+ 50° C / 0…100 % RH / 0 to 20000 lux / 0 to + 10000 mW/m²
Accuracy: ± 0.5° C / ± 2 % RH / ± 3 lux / ± 5 mW/m²
The possibility of connecting two probes (S-TH, S-LuxUV or S-Lux)
Smoke. 76 x 64 x 22 mm

External probes for testo 160

They are designed for glass showcases where the logger cannot be placed. We offer three types of probes: for temperature and humidity, UV radiation and light and UV radiation. They are also suitable for air-conditioned showcases. The length of the cable is 0.6 m, but a length of 2.5 m can also be ordered. Cables can be combined up to a length of 10 m.

The device and cables can be hidden in an invisible place, so that the probe is only minimally visible.

1. testo S-TH, external probe for temperature and humidity
(also suitable for testo 160 THE and testo 160 E)

Measuring range: 0 … 100 % RH / – 50 … + 50° C
Accuracy: ± 2 % RH / ± 0.5° C
Smoke. 38 x 16 mm

2. testo S-Lux, external probe for lux
(also suitable for testo 160 THE and testo 160 E)

Measuring range: 0 … 20,000 lux
Accuracy: ± 3 lux
Smoke. 28 x 56 x 15 mm

3. testo S-LuxUV, external probe for lux and UV
(also suitable for testo 160 THE and testo 160 E)

Measuring range: 0 … 20,000 lux / 0 … 10,000 mW/m2
Accuracy: ± 3 lux / ± 3 %
Smoke. 28 x 56 x 15 mm

Common characteristics of the testo 160 data logger

Measurement cycle: depending on Cloud license / basic: 15 min…24 h / advanced: 1 min…24 h flexible
Communication cycle: depending on the Cloud license / basic: 15 min…24 h / advanced: 1 min…24 h
Cloud-Server: testo Cloud-Server
Memory: 40,000 measured values (sum of channels)
Power supply: 4 x AAA alkaline-manganese batteries 1.5 V
Battery life (depending on the measurement and communication cycle to the Cloud): approx. 1.5 years (at + 25° C)
Case material: artificial
Wall bracket: included

Other characteristics

Dimensions (hxwxd): 76 x 64 x 22 mm
Weight: approx. 94 g (with batteries)
Operating range: – 10 … + 50° C

System prerequisites

Computer: Adobe Acrobat Reader required (logger configuration)
Browser: Firefox (version 20 or later)
Internet Explorer (version 8 or later)
Opera
Google Chrome
Apple Safari
Apple Mobile Safari (iPhone, iPad, iPod): 6.0 Mobile or later (current version: 7.0 Mobile)
Google Android (Google Android 4.0 or later)
Java Script must be activated in all browsers
Router: with small networks / commercial routers, no special adjustment is required
Network: 2.4 GHz (IEEE 802.11 b/g/n)
does not support 5 GHz networks
Encryption: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS , EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Software

Saveris 2 Cloud, basic license
For an unlimited number of Saveris 2 WLAN loggers
Measuring cycle: 15 min (fixed)
Communication cycle: flexible, not less than 1 hour
Data storage for up to three months (circular buffer)

SKU	Product name	Price	Buy
05722021	testo 160 TH (for temperature and humidity)	298,10 € (2.246,03 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05542006	Decorative cover for testo 160 TH, testo 160 THE, 160 E	9,90 € (74,59 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722023	testo 160 THE (for temperature, humidity and UV)	353,10 € (2.660,43 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722024	testo 160 THL (for temperature, humidity, lux and UV)	684,20 € (5.155,10 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05542009	Decorative cover for dough 160 THL	9,90 € (74,59 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722022	testo 160 E (for glass display cases)	239,80 € (1.806,77 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722156	testo S-TH, external probe for temperature and humidity	141,90 € (1.069,15 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722158	testo S-Lux, external probe for lux	261,80 € (1.972,53 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart
05722157	testo S-LuxUV, external probe for lux and UV	369,60 € (2.784,75 kn) /pc	WiFi Testo 160 – monitoring system for microclimate in museums, archives and libraries quantity Add to cart

Cijene u tablici su bez PDV-a.
