Picture hanging system ADVANCED

0,54  (4,07 kn) 16,99  (128,01 kn) /pc, /set

The ADVANCED NEWLY R20 picture hanging system also enables quick hanging and replacement of pictures without long and noisy drilling and destroying the walls with new holes. The difference compared to the widespread CLASSIC system is its higher load capacity, which goes up to a maximum of 30 kg/m. The ADVANCED system is intended for galleries, museums, schools, libraries, healthcare institutions and various business and private spaces that have larger formats and heavier frames.

The design will fit harmoniously into most interiors, especially since the rails can be painted in a different color if necessary. The ten-year warranty on the rails speaks volumes for the quality of the materials, reliability and functionality of the NEWLY R20 system with a load capacity of 30 kg/m.

  • high quality aluminum
  • load capacity up to 30 kg
  • invisible guide head
  • color white primer
  • rail warranty of 10 years

The picture hanging system consists of the following basic elements:

  • gallery rail
  • guide Twister
  • hanger
  • corner connector
  • end cap

1. The gallery rail is the basic part of the picture hanging system. Once installed, the gallery rail provides a permanent solution for quickly hanging pictures or decorations and for their replacement without constant drilling and destroying the walls with new holes.

Dimensions: 11.5 x 23 mm, available in 2 meter lengths with the option of shortening and cutting to adapt the rail to your needs.

Load capacity: up to 30 kg per meter.

2. Twister guide – with nylon 2 mm thick and 2 m long with a load capacity of up to 20 kg. The guide enables horizontal (left-right) movement of pictures, posters, or decorations. In the case of paintings, posters or decorations of greater weight, it is necessary to add another guide.

The Twister steel guide has the same load capacity as the nylon one and differs from it only in terms of material and appearance. The twister or the head of both types of guides, unlike competing ones, completely enters the rail and does not spoil the visual impression.

3. Hangers load capacities up to 20 kg enable faster handling and great time savings. After the hanger H70 for the MUSEUM PRESTIGE R70 system, the hanger H100 is the most reliable on the market and is intended for both types of guides mentioned. In the case of paintings, posters or decorations of greater weight, it is necessary to add another hanger on the additional guide.

Instead of the H100 hanger, for smaller heavy frames you can choose the H10, an economical version of the hanger with a load capacity of up to 4 kg. It has a simple appearance and can only be combined with a nylon guide.

Using the hanger is very simple:

  • you put it on the guide
  • you move the hanger to the desired height with the spring over the nylon guide
  • by pressing your fingers, you fix the hanger at the selected height
  • hang a picture on the front hook.

If you change exhibits frequently (at least 3 to 4 times a year) or if you hang a large number of exhibits, saving time is an absolute advantage and a reason to choose hangers that are used with a guide.

4. Hanger/connecting plate – serves to fix the rails on the wall and is mounted every 40 cm. In the case of connecting several gallery rails (by length), it is possible to connect them with the same element that is placed on the inside/rear side of the rail. It is completely invisible and ensures that the rails are held together. So, only one element has the role of both hanger and connecting plate.

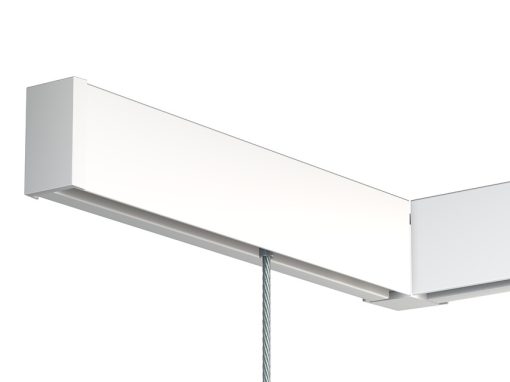

5. Corner connector – when connecting the rails to each other, especially on the outer corners of the walls, the corner connectors will elegantly and inconspicuously integrate two rails into one unit.

6. End cap – used to close the first and last rail and ensures safety against the guide falling out of the rail when pulling left-right.

7. Assembly – load-bearing wall elements for the gallery rail are adjusted to 40 cm ( you get 6 hangers/connecting plates, 6 screws and 6 dowels for the wall for free ) and continue to follow the instructions received.

SKUProduct namePriceBuy
1201200Gallery rail, white, 200 cm, load capacity up to 30 kg/m (includes 6 hangers/connecting plates, 6 screws and 6 dowels)16,99  (128,01 kn) /set
5010200-ITwister guide, nylon, 200 cm, load capacity 20 kg3,88  (29,23 kn) /pc
6010200-ITwister guide, steel, 200 cm, load capacity 20 kg7,42  (55,91 kn) /pc
3020100-IHanger H100, load capacity 20 kg4,94  (37,22 kn) /pc
3021100-IVješalica H50, nosivost 5 kg1,64  (12,36 kn) /pc
3024100-IHanger H10, load capacity 4 kg0,96  (7,23 kn) /pc
2201200Corner connector for gallery rail R200,64  (4,82 kn) /pc
2201100End cap for gallery rail R20, white0,54  (4,07 kn) /pc

Cijene u tablici su bez PDV-a.
